Step 1

Press and hold both the top and bottom buttons, marked SCROLL and SET on the wall transmitter, simultaneously for 3 seconds. The transmitter display will show "00," indicating programming mode. Once you release the buttons, the transmitter will start flashing the level number your system is set to.

Step 2

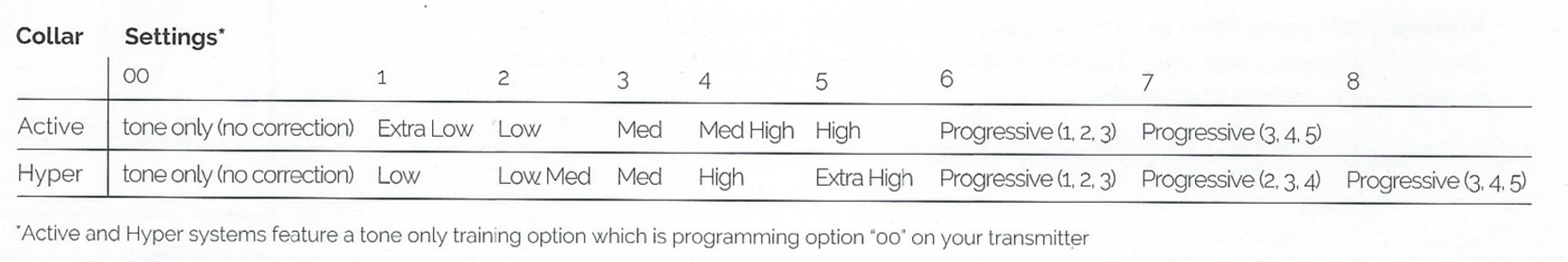

Release both transmitter buttons. Press and release the SCROLL button to select the desired correction setting. The transmitter display will show the corresponding number setting with each button press.

The Active and Hyper systems are delivered with the SAME PROGRAMMING TRANSMITTER. If you have the Active system, you will not have access to level 8 unless you upgrade to the HYPER collar.

Step 3

Hold the pet fence collar receiver against the wall mount transmitter. The collar receiver light will illuminate, indicating it is ready to be programmed. Press and release the bottom button marked SET on the wall transmitter. The collar receiver light will flash the number corresponding to the level you have selected. When programming is complete, the transmitter will return to normal operation, and the number that you will see will be the boundary distance your transmitter is set to.
